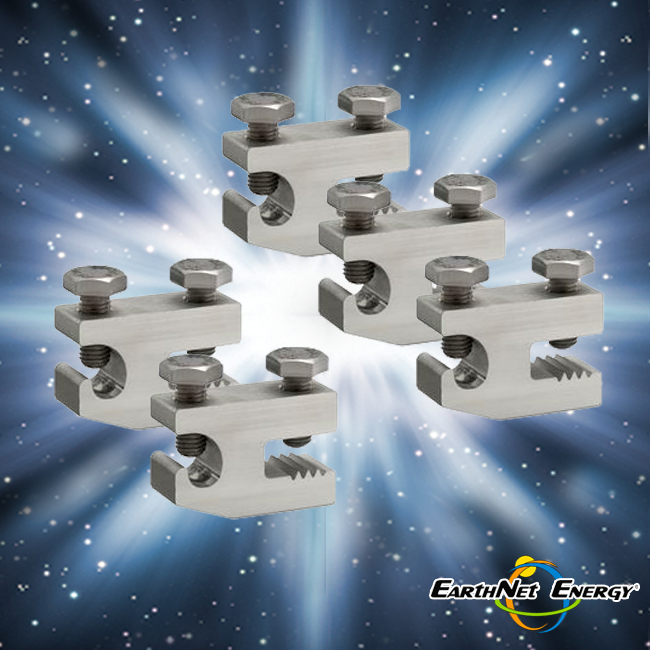

Grounding Lugs

The grounding lug has extruded serrations for breaking the anodized finish on PV modules and frames. The serrations in the wire binding break corrosion on the grounding wire, which means that no surface preparation is required for the PV module, frame, or ground wire. The unique clamp-on design means no mounting holes are required, the connector simply clamps onto the frame of the solar panel. The aluminum connectors accommodate 4 AWG to 14 AWG, and are dual-rated for copper or aluminum conductor.
